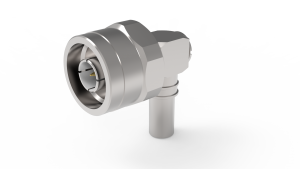

TC-240-NMH-X (3190-6549) – N Male Right Angle Crimp, Solder Pin, No Braid Trim for LMR-240 Cable

Image is for illustrative purposes only
Drawing Installation Instructions
Stock and Pricing
Minimum Order Quantity Per item price
1 £12.73
10 £12.41
25 £12.09
50 £11.78
100 £11.46

293 in stock (can be backordered)

SKU: TC-240-NMH-RA-D Category:
For larger quantities, please contact our sales team for a quote.

Tooling and Information
PreviousNext
12

Specifications

ManufacturerTimes Microwave Systems
Part NumberTC-240-NMH-RA-D
InterfaceN
GenderMale
OrientationRight Angle
PIM RatingN/A
Stock Code3190-6549
VSWR Frequency1.30:1
VSWR Frequency6 GHz
Coupling NutHex / Knurl
Inner Contact AttachmentSolder
Outer Contact AttachmentCrimp
Body FinishAlballoy
Pin FinishGold
Length (in)1.41
Length (mm)35.7
Width (in)1.24
Width (mm)31.5
Weight (lb)0.1
Weight (g)45.49
