TC-240-SM-RA-SS-D (3190-6546) – SMA Male Right Angle Crimp, Solder Pin, No Braid Trim for LMR-240 Cable

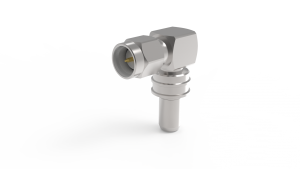

Image is for illustrative purposes only
Drawing Installation Instructions
Stock and Pricing
Minimum Order Quantity Per item price
1 £10.00
10 £9.75
25 £9.50
50 £9.25
100 £9.00

0 in stock, Available on backorder, call 02392 652 552 for delivery time

SKU: TC-240-SM-RA-SS-D Category:
For larger quantities, please contact our sales team for a quote.

Tooling and Information
PreviousNext
12

Specifications

ManufacturerTimes Microwave Systems
Part NumberTC-240-SM-RA-SS-D
InterfaceSMA
GenderMale
OrientationRight Angle
PIM RatingN/A
Stock Code3190-6546
VSWR Frequency1.35:1
VSWR Frequency6 GHz
Coupling NutHex
Inner Contact AttachmentSolder
Outer Contact AttachmentCrimp
Body FinishStainless Steel
Pin FinishGold
Length (in)0.8
Length (mm)20
Width (in)0.65
Width (mm)16.5
Weight (lb)0.019
Weight (g)8.6
