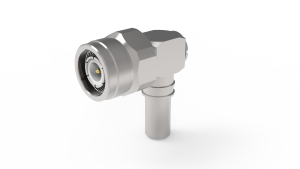

TC-240-TM-RA-D (3190-6547) – TNC Male Right Angle Crimp, Solder Pin, No Braid Trim for LMR-240 Cable

Image is for illustrative purposes only
Drawing Installation Instructions
Stock and Pricing
Minimum Order Quantity Per item price
1 £8.63
10 £8.41
25 £8.20
50 £7.98
100 £7.77

331 in stock (can be backordered)

SKU: TC-240-TM-RA-D Category:
For larger quantities, please contact our sales team for a quote.

Tooling and Information
PreviousNext
12

Specifications

ManufacturerTimes Microwave Systems
Part NumberTC-240-TM-RA-D
InterfaceTNC
GenderMale
OrientationRight Angle
PIM RatingN/A
Stock Code3190-6547
VSWR Frequency1.35:1
VSWR Frequency6 GHz
Coupling NutHex / Knurl
Inner Contact AttachmentSolder
Outer Contact AttachmentCrimp
Body FinishAlballoy
Pin FinishGold
Length (in)1.31
Length (mm)33.3
Width (in)1.24
Width (mm)31.5
Weight (lb)0.07
Weight (g)32.44
